2174803-2
Manufacturer:
TE Connectivity
Mfr.Part #:
2174803-2
Datasheet:
Description:

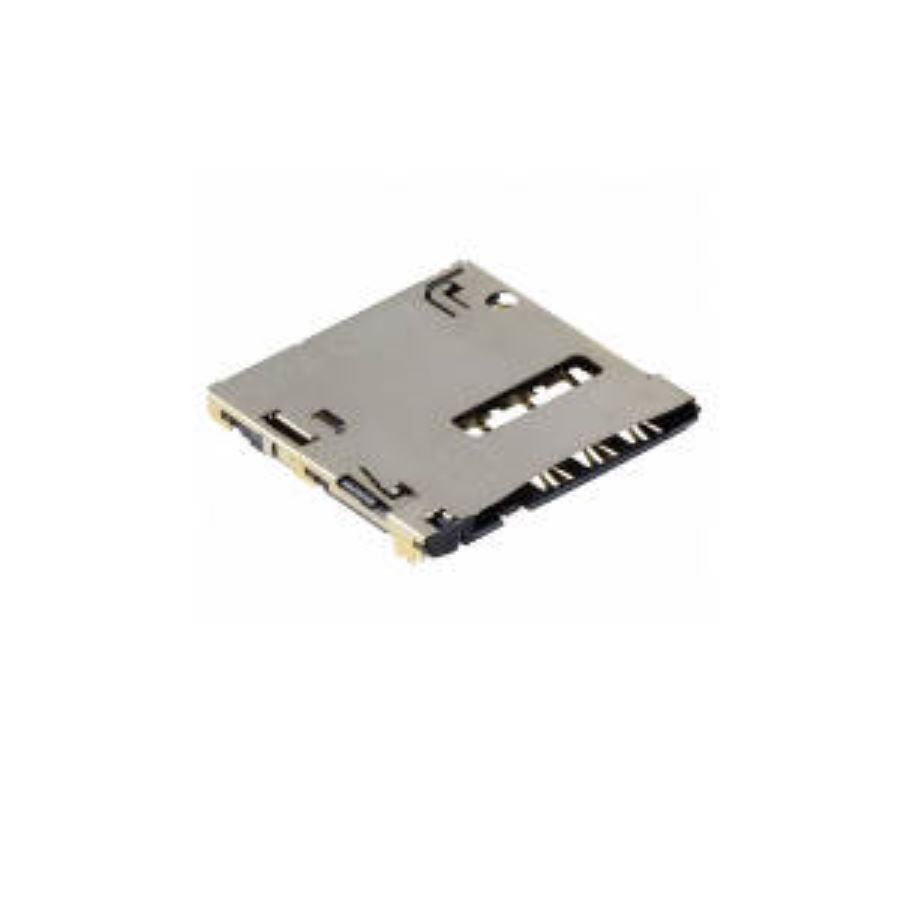

Memory Connectors SMD/SMT Number of Positions:6 Connector, Socket
| Parameter | Value |
|---|---|
| Length | 15.1 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 10 V |
| Height | 1.27 mm |
| Packaging | Reel |
| Voltage Rating | 10 V |
| Depth | 15.98 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.54 mm |
| Current Rating | 500 mA |
| Max Current Rating | 500 mA |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Number of Contacts | 6 |
| ELV | Compliant |
| Connector Type | Connector, Socket |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Contact Current Rating | 500 mA |
| Housing Color | Black |
| Shell Material | Stainless Steel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Durability Rating | 1500 cycles |
Stock: 3738
Distributors
pcbx
pcbxUnit Price$1.63377
Ext.Price$1.63377
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.63377 | $1.63377 |
| 10 | $1.37644 | $13.76440 |
| 25 | $1.33283 | $33.32075 |
| 50 | $1.30206 | $65.10300 |
| 100 | $1.27043 | $127.04300 |
| 300 | $1.12439 | $337.31700 |
| 500 | $0.99514 | $497.57000 |
| 1000 | $0.91990 | $919.90000 |
